NU-314K

By Nordic Audio Labs

NU-314K

Going back to the very roots of condenser microphone design, the NU-314K is a completely unique approach. It explores the natural properties of the popular large diaphragm capsule, but as a true pressure transducer. A pure omnidirectional microphone.

The capsule construction itself is one of a kind, to our knowledge never attempted before in the history of microphone making. The result is a special microphone with a highly desirable and organic high frequency boost and focus. As well as a capacity to capture transients and detail which even puts many SDC microphones to shame.

It is the obvious candidate for any stereo or Decca tree setup where resolution and musical beauty combined with reliability and low self noise is key, but has a much wider application range, including vocal and instrument recording at close distance.

The NU-314K is delivered either as a single microphone, a selected pair, Decca tree triplet, or in special cases even 5-6 microphones. All with supermatched capsules.

Features

Hand made with love in Finland

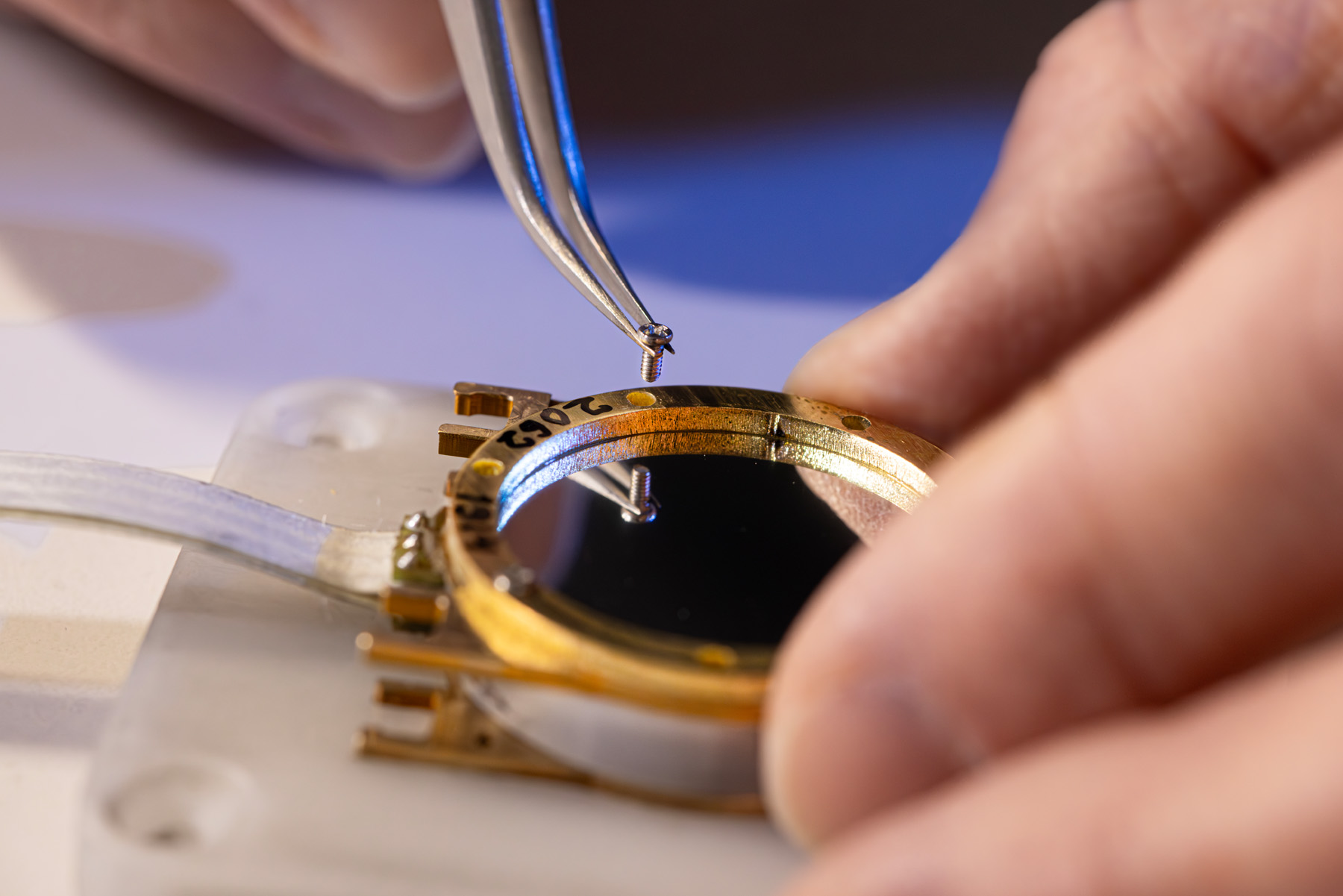

Proprietary P100K 30mm true pressure transducer capsule
Superlative transient detail
The proprietary capsule design means the microphone is not affected by humidity like conventional condenser microphones, eliminating potential moisture related problems when vocal and location recording
Very good signal to noise figures make it easy to record low level instruments perfectly
10 years warranty

Technical Specifications

Model:NU-314K
Type Series:Large Diaphragm Omni Signature
Operating principle:Condenser

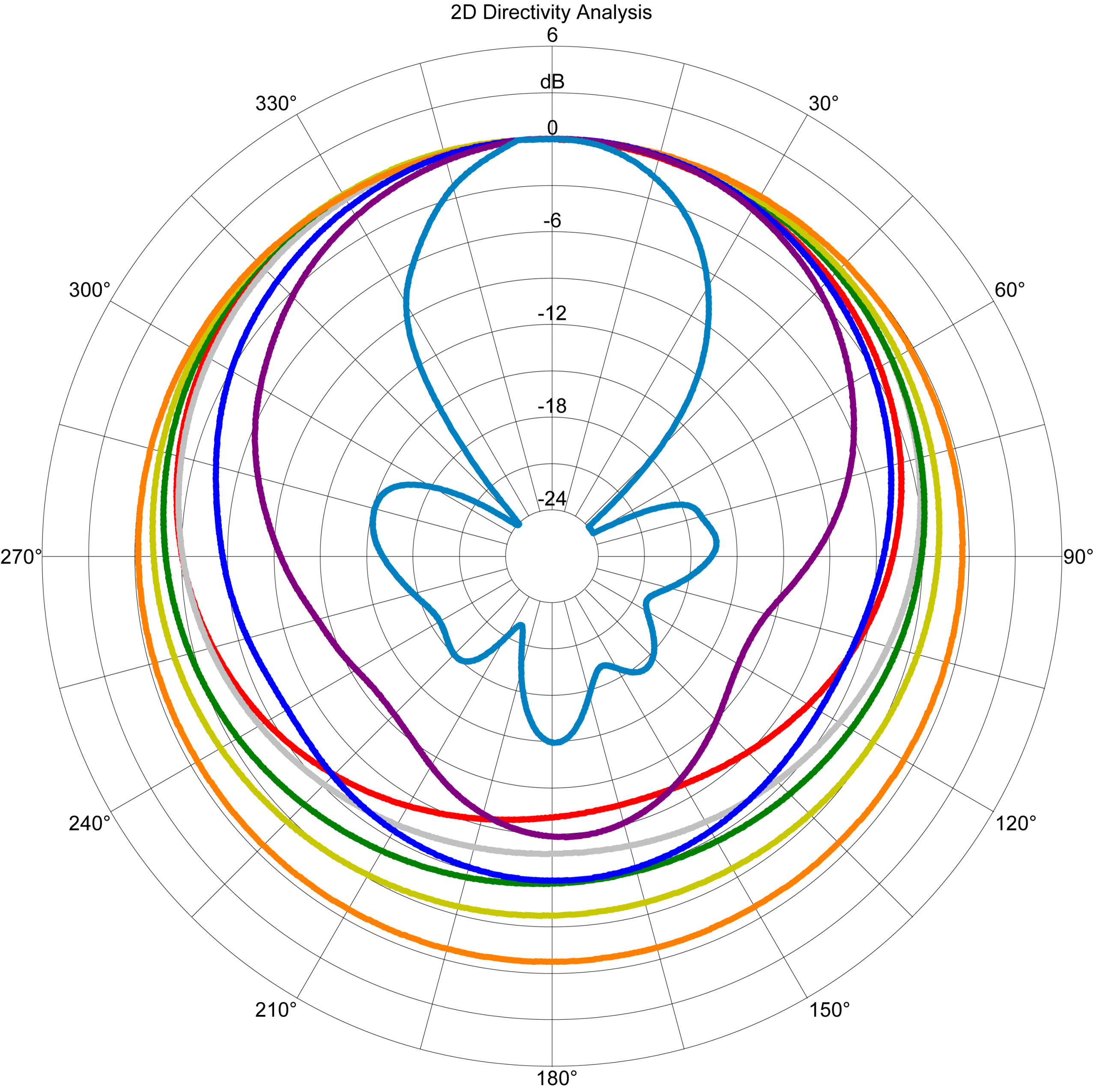

Polar pattern:Omni with focus
Frequency response:20 – 20.000 Hz (-2/+5 dB)
Sensitivity:53.4 mV/Pa
Self noise:13.6 dBA
Max SPL 1% THD:135 dBA @ 10k load
Power requirement:+48V phantom @ 5.2 mA
Output impedance:22 Ohms
Weight: 376 grams
Length:192.5 mm
Diameter:38 mm
Accessories included:Cradle, hardcase
Extra accessories:Hardcase
Color options:Black, Brass and Grey
ColorBlack/Black, Gold/Gold, Grey/Gold

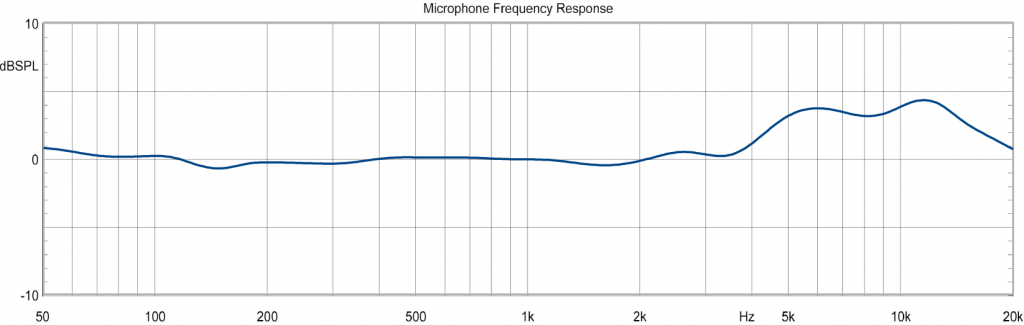

Frequency Response

314 frequency response
